Cornell Dubilier Electronics (CDE)

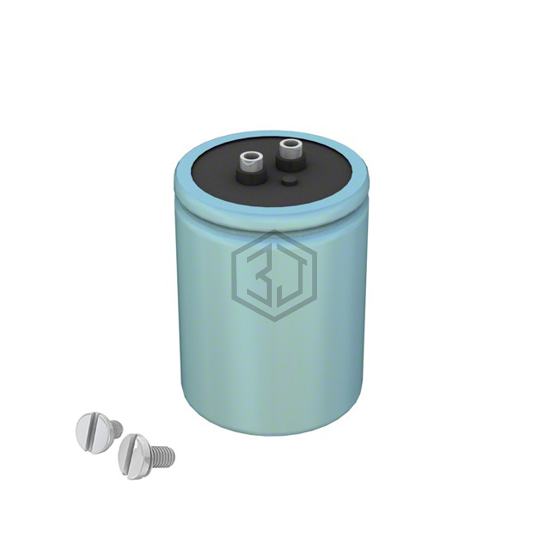

CAP ALUM 520UF 500V SCREW
CGH521T500V2L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 520UF 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,237
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 520 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 470mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.091 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 2.625" (66.68mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 36DX521F400EL2A | Vishay Sprague | CAP ALUM 520UF 400V SCREW | 86% | View |
| CGS531T500R4L | Cornell Dubilier Electronics (CDE) | CAP ALUM 530UF 500V SCREW | 72% | View |
| ALS71A511DB450 | KEMET | CAP ALUM 510UF 20% 450V SCREW | 55% | View |
| ALS71H511DB450 | KEMET | CAP ALUM 510UF 20% 450V SCREW | 55% | View |
| 36D531F250AC2A | Vishay Sprague | CAP ALUM 530UF 250V SCREW | 54% | View |
| 36D531F250AC0B | Vishay Sprague | CAP ALUM 530UF 250V SCREW | 54% | View |
Submit your RFQ for CGH521T500V2L and get a quote within 24 hours.
