Cornell Dubilier Electronics (CDE)
CAP ALUM 3800UF 350V SCREW

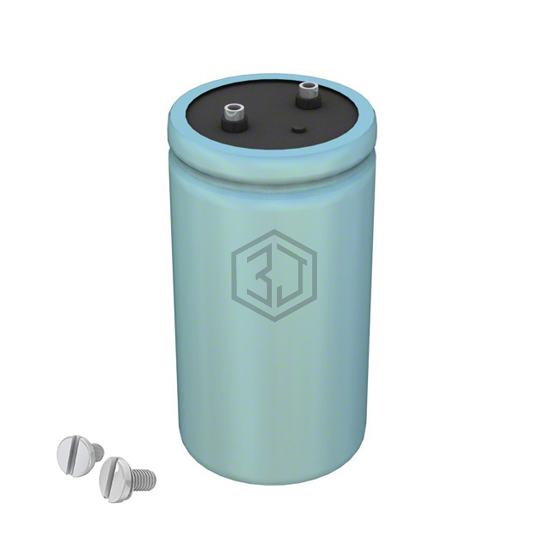

CGH382T350W4L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3800UF 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,487
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3800 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 39.3mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 10.332 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.625" (117.48mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DCM382U400DE2D | Cornell Dubilier Electronics (CDE) | CAP ALUM 3800UF 400V SCREW | 91% | View |
| E36D401CES382MEE3U | United Chemi-Con | CAP ALUM 3800UF 20% 400V SCREW | 91% | View |
| E36D401LPN372TEE3U | United Chemi-Con | CAP ALUM 3700UF 400V SCREW | 89% | View |
| CGS382T300V5L | Cornell Dubilier Electronics (CDE) | CAP ALUM 3800UF 300V SCREW | 87% | View |
| CG382T200X5L | Cornell Dubilier Electronics (CDE) | CAP ALUM 3800UF 200V SCREW | 62% | View |
| 36D372F200CF2A | Vishay Sprague | CAP ALUM 3700UF 200V SCREW | 62% | View |
Submit your RFQ for CGH382T350W4L and get a quote within 24 hours.
