Cornell Dubilier Electronics (CDE)

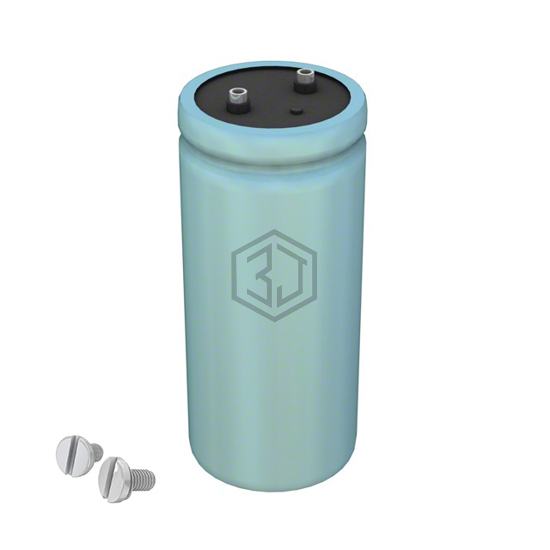

CAP ALUM 2700UF 500V SCREW
CGH272T500W5L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2700UF 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,606
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 93.9mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.9 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 5.625" (142.88mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNU2H272MSEGBB | Nichicon | CAP ALUM 2700UF 20% 500V SCREW | 84% | View |
| ALS80H272MF500 | KEMET | CAP ALUM 2700UF 20% 500V SCREW | 82% | View |
| LNY2G272MSEFBN | Nichicon | CAP ALUM 2700UF 20% 400V SCREW | 72% | View |
| LNC2G272MTEG | Nichicon | CAP ALUM 2700UF 20% 400V SCREW | 62% | View |
| LNC2V272MSEFBB | Nichicon | CAP ALUM 2700UF 20% 350V SCREW | 59% | View |
| 36D272G025AA2A | Vishay Sprague | CAP ALUM 2700UF 25V SCREW | 56% | View |
