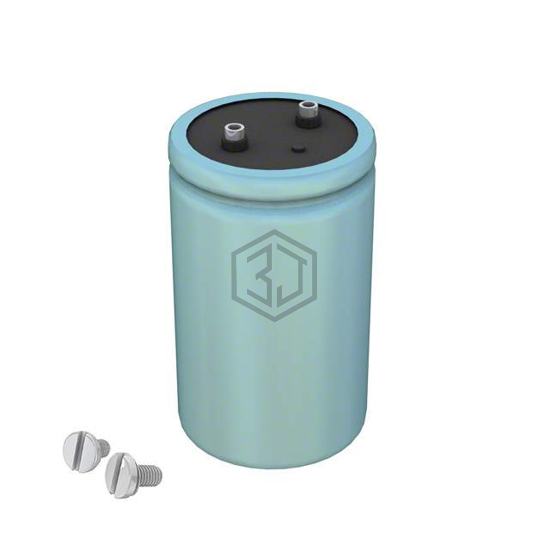

Cornell Dubilier Electronics (CDE)
CAP ALUM 1800UF 500V SCREW
CGH182T500W4C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1800UF 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,267
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 142mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.2 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D501HLN182MCD0U | United Chemi-Con | CAP ALUM 1800UF 20% 500V SCREW | 100% | View |
| E36D451HPN182MCB7U | United Chemi-Con | CAP ALUM 1800UF 20% 450V SCREW | 86% | View |
| LNU2H182MSEG | Nichicon | CAP ALUM 1800UF 20% 500V SCREW | 82% | View |
| B43703A5188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 450V SCREW | 77% | View |
| LNY2G182MSEF | Nichicon | CAP ALUM 1800UF 20% 400V SCREW | 67% | View |
| B43706A6188M600 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 500V SCREW | 65% | View |
Submit your RFQ for CGH182T500W4C and get a quote within 24 hours.
