Cornell Dubilier Electronics (CDE)

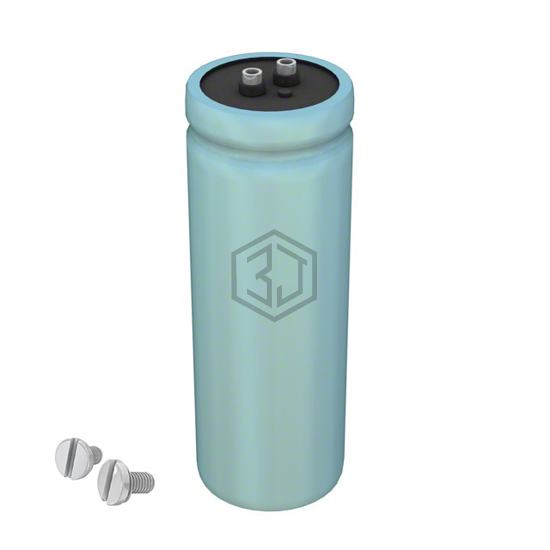

CAP ALUM 1800UF 450V SCREW
CGH182T450V5L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1800UF 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,629
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 47.6mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.856 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 5.625" (142.88mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNY2W182MSEFBB | Nichicon | CAP ALUM 1800UF 20% 450V SCREW | 92% | View |
| LNU2H182MTEH | Nichicon | CAP ALUM 1800UF 20% 500V SCREW | 92% | View |
| LNY2W182MSEGBN | Nichicon | CAP ALUM 1800UF 20% 450V SCREW | 87% | View |
| E36D351LPN182TCA5U | United Chemi-Con | CAP ALUM 1800UF 350V SCREW | 84% | View |
| 36DY182F350BF2A | Vishay Sprague | CAP ALUM 1800UF 350V SCREW | 83% | View |
| LNC2W182MSEFBB | Nichicon | CAP ALUM 1800UF 20% 450V SCREW | 74% | View |
Submit your RFQ for CGH182T450V5L and get a quote within 24 hours.
