Cornell Dubilier Electronics (CDE)

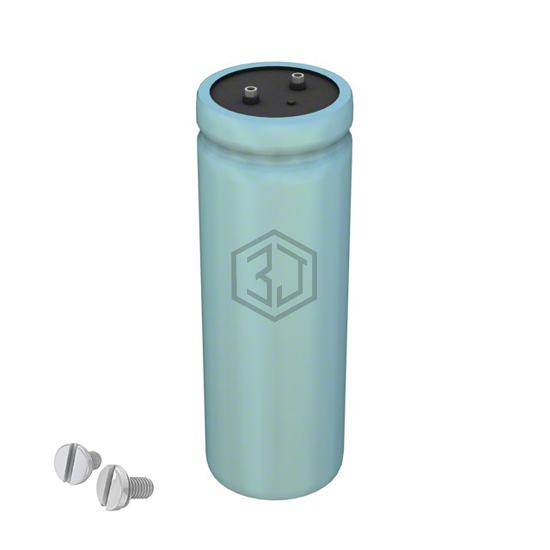

CAP ALUM 10000UF 350V SCREW
CGH103T350X8L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 10000UF 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,395
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 20.7mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 16.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 20.418 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 8.625" (219.08mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210485103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 350V SCREW | 93% | View |
| ALS71A103QH350 | KEMET | CAP ALUM 10000UF 20% 350V SCREW | 91% | View |
| MAL210275103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 350V SCREW | 89% | View |
| ALS80C103NT450 | KEMET | CAP ALUM 10000UF 20% 450V SCREW | 84% | View |
| LNY2G103MSEHBN | Nichicon | CAP ALUM 10000UF 20% 400V SCREW | 78% | View |
| MAL210247103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 450V SCREW | 74% | View |
Submit your RFQ for CGH103T350X8L and get a quote within 24 hours.
