Cornell Dubilier Electronics (CDE)

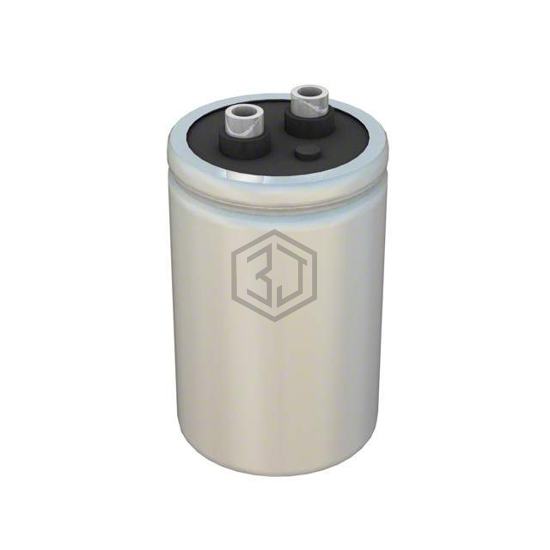

CAP ALUM 800UF 75V SCREW
CG801U075R2C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 800UF 75V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 75 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,754
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 800 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 75 V |
| ESR (Equivalent Series Resistance) | 72mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.68 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.375" Dia (34.93mm) |
| Height - Seated (Max) | 2.125" (53.98mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CG801U050R2C | Cornell Dubilier Electronics (CDE) | CAP ALUM 800UF 50V SCREW | 88% | View |
| CGS801T200R2C | Cornell Dubilier Electronics (CDE) | CAP ALUM 800UF 200V SCREW | 73% | View |
| CGS801T350V4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 800UF 350V SCREW | 73% | View |
| CGS811T300R3C | Cornell Dubilier Electronics (CDE) | CAP ALUM 810UF 300V SCREW | 72% | View |
| CGS811T400R4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 810UF 400V SCREW | 71% | View |
| CGS801T450V4L | Cornell Dubilier Electronics (CDE) | CAP ALUM 800UF 450V SCREW | 57% | View |
Submit your RFQ for CG801U075R2C and get a quote within 24 hours.
