Cornell Dubilier Electronics (CDE)
CAP ALUM 550UF 200V SCREW

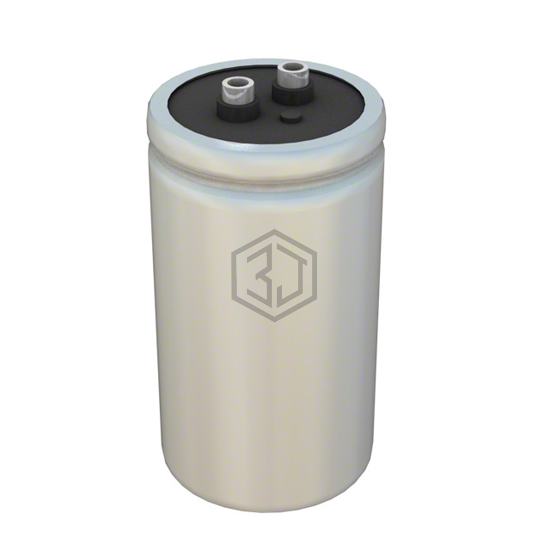

CG551T200U3C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 550UF 200V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,324
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 550 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 150mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.63 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.750" Dia (44.45mm) |
| Height - Seated (Max) | 3.125" (79.38mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 500C551T250AC2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 550UF 250V SCREW | 86% | View |
| DCMC551T250AC2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 550UF 250V SCREW | 86% | View |
| CGS551T250R4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 550UF 250V SCREW | 79% | View |
| CG551T350V4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 550UF 350V SCREW | 78% | View |
| CGS551T400R3C | Cornell Dubilier Electronics (CDE) | CAP ALUM 550UF 400V SCREW | 73% | View |
| CGS531T500R4L | Cornell Dubilier Electronics (CDE) | CAP ALUM 530UF 500V SCREW | 72% | View |
