Cornell Dubilier Electronics (CDE)
CAP ALUM 5000UF 50V SCREW

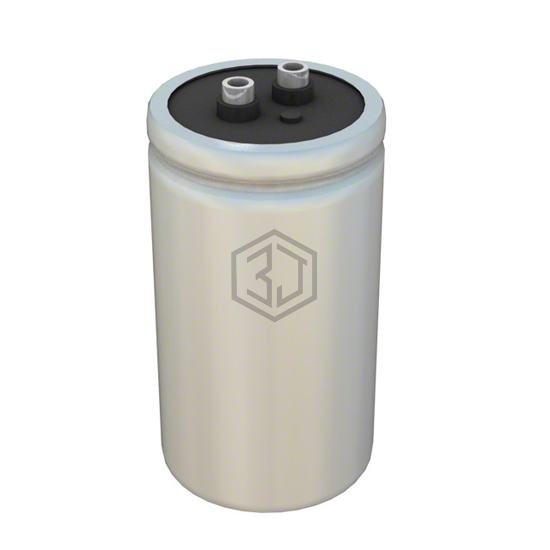

CG502U050U3C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 5000UF 50V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,839
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 29mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.705 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.750" Dia (44.45mm) |
| Height - Seated (Max) | 3.125" (79.38mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D500VHN502TA79U | Chemi-Con | CAP ALUM 5MF 50V SCREW CHAS MT | 100% | View |
| CGS502U050R3C | Cornell Dubilier Electronics (CDE) | CAP ALUM 5000UF 50V SCREW | 97% | View |
| 101C502U063AA0B | Cornell Dubilier Knowles | CAP ALUM 63V POLAR | 90% | View |
| CGS502U075V4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 5000UF 75V SCREW | 74% | View |
| CGS502U075R2C | Cornell Dubilier Electronics (CDE) | CAP ALUM 5000UF 75V SCREW | 70% | View |
| 520C502M450DP2G | Cornell Dubilier Electronics (CDE) | CAP ALUM 5000UF 20% 450V SCREW | 56% | View |
Submit your RFQ for CG502U050U3C and get a quote within 24 hours.
