Cornell Dubilier Electronics (CDE)

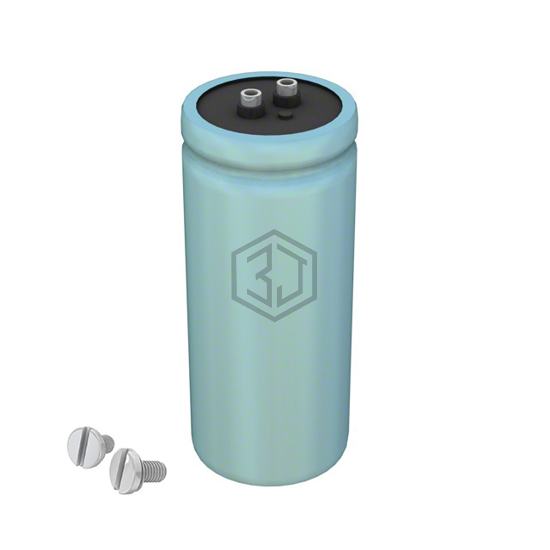

CAP ALUM 40000UF 16V SCREW
CG403U016V4C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 40000UF 16V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Screw Terminals.
In Stock: 42
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 40000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 9mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 16.905 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for CG403U016V4C and get a quote within 24 hours.
