Cornell Dubilier Electronics (CDE)

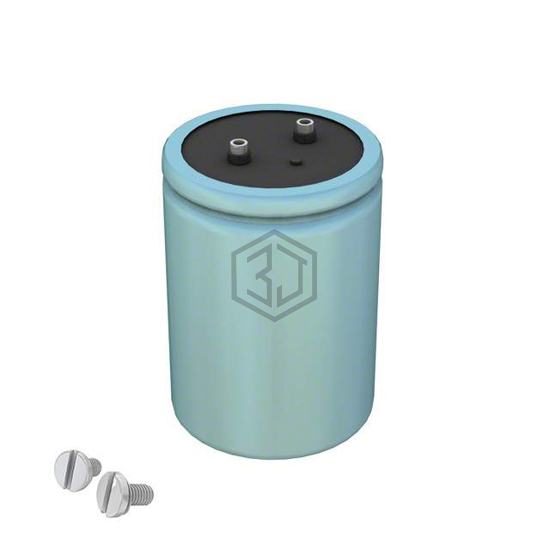

CAP ALUM 33000UF 35V SCREW
CG333U035X4C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 33000UF 35V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,440
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 6mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 23 A @ 120 Hz |
| Ripple Current @ High Frequency | 26.45 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210637333E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 40V SCREW | 92% | View |
| E32D101HPC333MEA5U | United Chemi-Con | CAP ALUM 33000UF 20% 100V SCREW | 75% | View |
| E32D101HPN333MDD0U | United Chemi-Con | CAP ALUM 33000UF 20% 100V SCREW | 70% | View |
| MAL210149333E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 100V SCREW | 68% | View |
| LNT2A333MSEN | Nichicon | CAP ALUM 33000UF 20% 100V SCREW | 57% | View |
| E36D101HPN333UEM9U | United Chemi-Con | CAP ALUM 33000UF 100V SCREW | 56% | View |
Submit your RFQ for CG333U035X4C and get a quote within 24 hours.
