Cornell Dubilier Electronics (CDE)

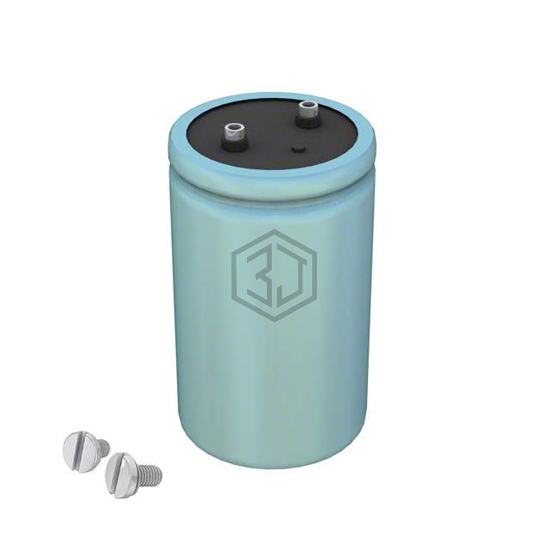

CAP ALUM 32000UF 25V SCREW
CG323U025W4C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 32000UF 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,733
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 32000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 10mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 15.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 18.285 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 36D323F040DG2B | Vishay Sprague | CAP ALUM 32000UF 40V SCREW | 70% | View |
| E36D400HPN323UAA5U | United Chemi-Con | CAP ALUM 32000UF 40V SCREW | 70% | View |
| DCMX323U040AC2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 32000UF 40V SCREW | 70% | View |
| DCM323U040BE2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 32000UF 40V SCREW | 70% | View |
| 36DE323G040DG2A | Vishay Sprague | CAP ALUM 32000UF 40V SCREW | 70% | View |
| DCM323U015EB2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 32000UF 15V SCREW | 67% | View |
