Cornell Dubilier Electronics (CDE)

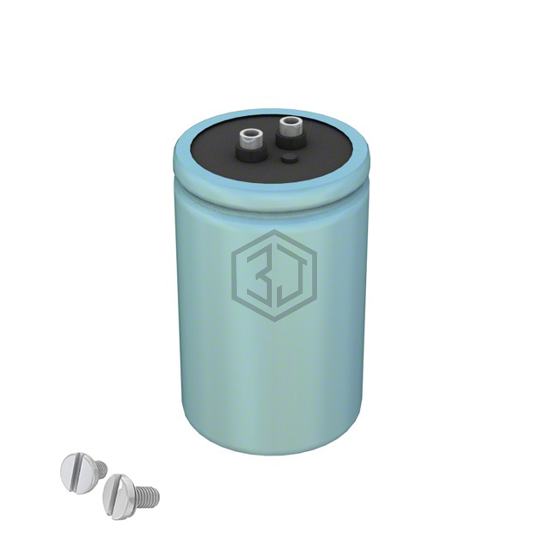

CAP ALUM 27000UF 16V SCREW
CG273U016V3C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 27000UF 16V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,003
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 27000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 12mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 13.11 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 3.125" (79.38mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH800LGC273MDA0U | Chemi-Con | CAP ALUM 23MF 75V SCREW CHAS MT | 78% | View |
| E36D800HPN273MD79U | Chemi-Con | CAP ALUM 27MF 20% 80V SCREW CHAS | 74% | View |
| CGS273U075X3L | Cornell Dubilier Electronics (CDE) | CAP ALUM 27000UF 75V SCREW | 72% | View |
| CGS273U050V4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 27000UF 50V SCREW | 72% | View |
| E36D800HPN273MCA5U | United Chemi-Con | CAP ALUM 27000UF 20% 80V SCREW | 70% | View |
| E36D101HPN273MDA5U | United Chemi-Con | CAP ALUM 27000UF 20% 100V SCREW | 63% | View |
Submit your RFQ for CG273U016V3C and get a quote within 24 hours.
