Cornell Dubilier Electronics (CDE)

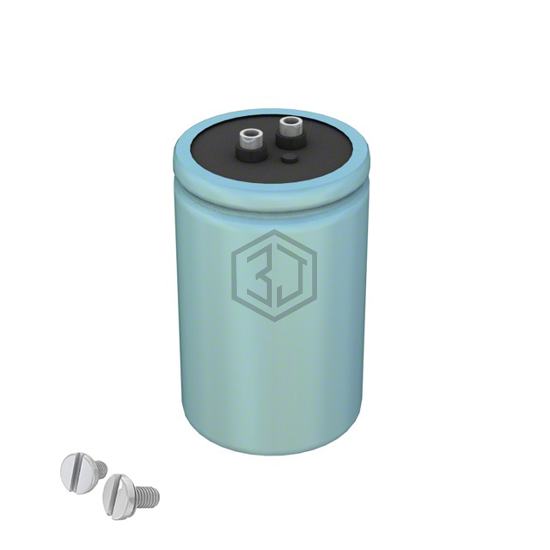

CAP ALUM 2500UF 75V SCREW
CG252U075V3C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2500UF 75V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 75 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,804
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2500 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 75 V |
| ESR (Equivalent Series Resistance) | 36mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.59 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 3.125" (79.38mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CG252U050U3C | Cornell Dubilier Electronics (CDE) | CAP ALUM 2500UF 50V SCREW | 83% | View |
| DCM252U050AC2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 2500UF 50V SCREW | 74% | View |
| CGH252T450X3L | Cornell Dubilier Electronics (CDE) | CAP ALUM 2500UF 450V SCREW | 68% | View |
| E36D201HPN252UE92U | United Chemi-Con | CAP ALUM 2500UF 200V SCREW | 56% | View |
| E36D401HPN252TEM9U | United Chemi-Con | CAP ALUM 2500UF 400V SCREW | 56% | View |
| DCM252T250BF2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 2500UF 250V SCREW | 56% | View |
