Cornell Dubilier Electronics (CDE)

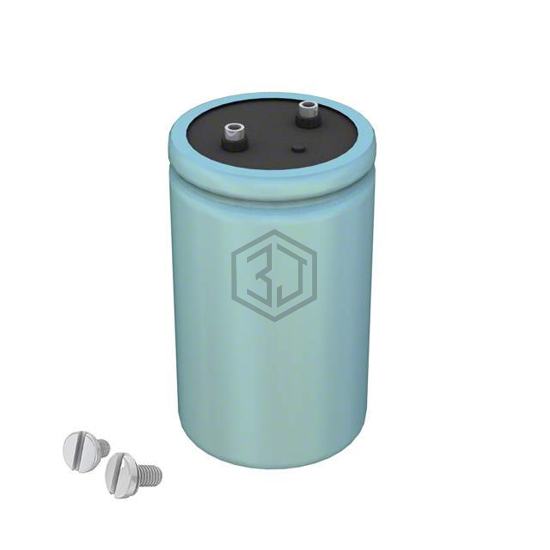

CAP ALUM 22000UF 35V SCREW
CG223U035W4C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22000UF 35V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,391
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 11mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 15.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 17.48 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210117223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 40V SCREW | 79% | View |
| CGS223U150X5C | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 150V SCREW | 75% | View |
| B41456B9229M003 | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 100V SCREW | 68% | View |
| CGR223U040W4L | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 40V SCREW | 63% | View |
| ALS80H223QM200 | KEMET | CAP ALUM 22000UF 20% 200V SCREW | 62% | View |
| ALS80H223NT250 | KEMET | CAP ALUM 22000UF 20% 250V SCREW | 61% | View |
Submit your RFQ for CG223U035W4C and get a quote within 24 hours.
