Cornell Dubilier Electronics (CDE)

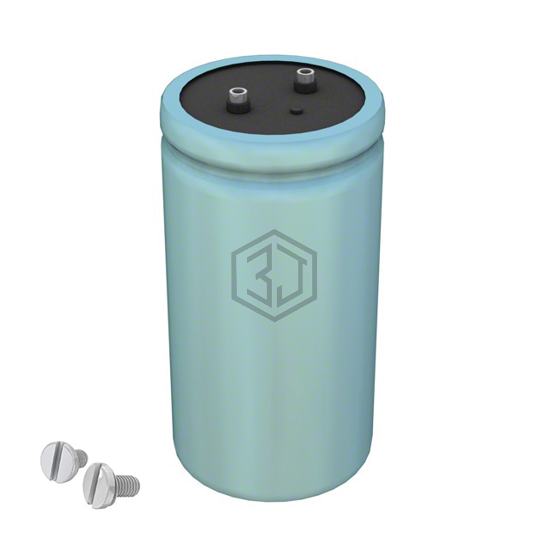

CAP ALUM 16500UF 50V SCREW
CG1652U050X5L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 16500UF 50V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,089
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 16500 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 10mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 23.575 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 5.625" (142.88mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS71C163NP250 | KEMET | CAP ALUM 16000UF 20% 250V SCREW | 75% | View |
| HVMLS173M020EB0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 17000UF 20% 20V FLATPCK | 70% | View |
| ALS70P163NT350 | KEMET | CAP ALUM 16000UF 20% 350V SCREW | 69% | View |
| ALS81G163NF200 | KEMET | CAP ALUM 16000UF 20% 200V SCREW | 67% | View |
| ALS81C163QT400 | KEMET | CAP ALUM 16000UF 20% 400V SCREW | 67% | View |
| DCM173U080CC2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 17000UF 80V SCREW | 67% | View |
