Cornell Dubilier Electronics (CDE)

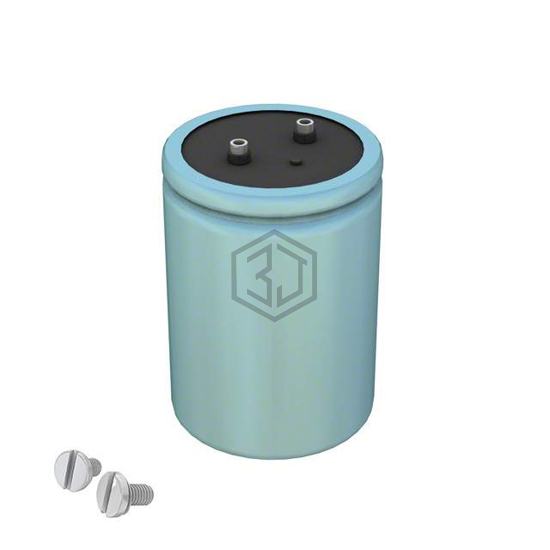

CAP ALUM 11000UF 75V SCREW
CG113U075X4C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 11000UF 75V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 75 V, package / case Radial, Can - Screw Terminals.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 11000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 75 V |
| ESR (Equivalent Series Resistance) | 9mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 18.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 21.62 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for CG113U075X4C and get a quote within 24 hours.
