Cornell Dubilier Electronics (CDE)

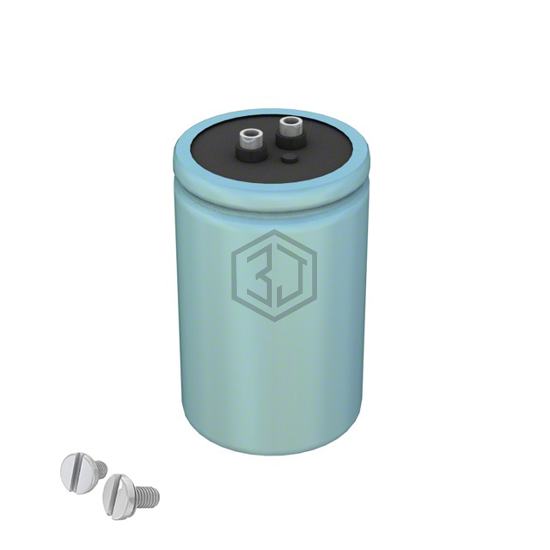

CAP ALUM 10500UF 16V SCREW
CG1052U016V3C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 10500UF 16V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,145
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10500 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 27mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.74 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 3.125" (79.38mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CG103U025U3C | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 25V SCREW | 81% | View |
| MLP113M050EB0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 11000UF 20% 50V FLATPCK | 73% | View |
| HVMLS103M020EA1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 20V FLATPCK | 64% | View |
| HVMLS103M020EA1D | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 20V FLATPCK | 64% | View |
| ALS70A113DB063 | KEMET | CAP ALUM 11000UF 20% 63V SCREW | 63% | View |
| LNT1H103MSE | Nichicon | CAP ALUM 10000UF 20% 50V SCREW | 56% | View |
Submit your RFQ for CG1052U016V3C and get a quote within 24 hours.
