Cornell Dubilier Electronics (CDE)

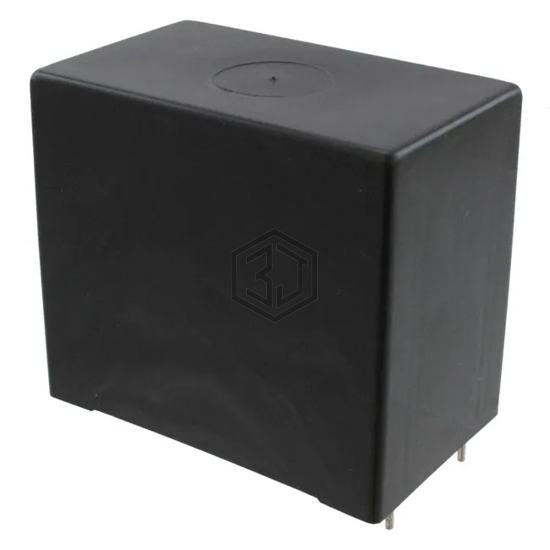

CAP FILM 25UF 5% 1.1KVDC RADIAL
BLC250J112B4F is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 25UF 5% 1.1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -45°C ~ 85°C, voltage rating - dc 1100V (1.1kV), package / case Radial - 4 Leads.
In Stock: 6,950
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 25 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 230V |
| Voltage Rating - DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4.2 mOhms |
| Operating Temperature | -45°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 2.264" L x 1.378" W (57.50mm x 35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Termination | PC Pins |
| Lead Spacing | 2.067" (52.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EFDKA1BK256E184DH | Eaton - Electronics Division | CAP FILM 25UF 10% 1100VDC RAD | 100% | View |
| MKP1848C62512JY2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 25UF 5% 1.2KVDC RADIAL | 98% | View |
| MKP1848C62510JP2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 25UF 5% 1KVDC RADIAL | 98% | View |
| F339MX262531MYI4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 25UF 20% 450VDC RADIAL | 84% | View |
| F339MX262531MYI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 25UF 20% 450VDC RADIAL | 84% | View |
| F339MX262531JYI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 25UF 5% 450VDC RADIAL | 84% | View |
Submit your RFQ for BLC250J112B4F and get a quote within 24 hours.
