Cornell Dubilier Electronics (CDE)

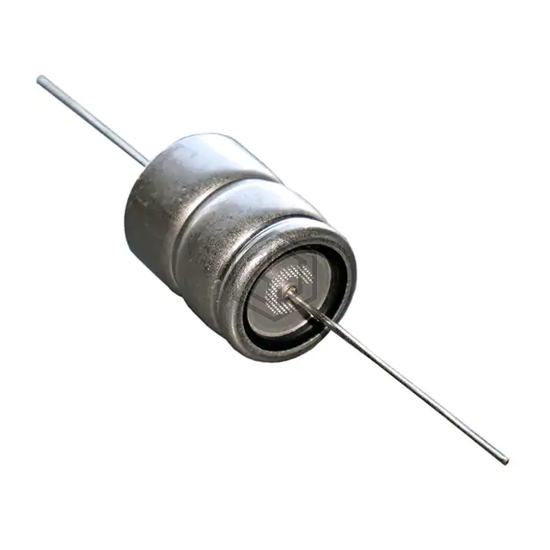

CAP ALUM 4700UF 25V AXIAL
AXLH472P025EL is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4700UF 25V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, voltage - rated 25 V, package / case Axial, Can.
In Stock: 28
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 25mOhm @ 100Hz |
| Lifetime @ Temp. | 2000 Hrs @ 150°C |
| Operating Temperature | -40°C ~ 150°C |
| Polarization | Polar |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 3.605 A @ 100 Hz |
| Ripple Current @ High Frequency | 10.3 A @ 5 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.787" Dia x 1.693" L (20.00mm x 43.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
Submit your RFQ for AXLH472P025EL and get a quote within 24 hours.
