Cornell Dubilier Electronics (CDE)

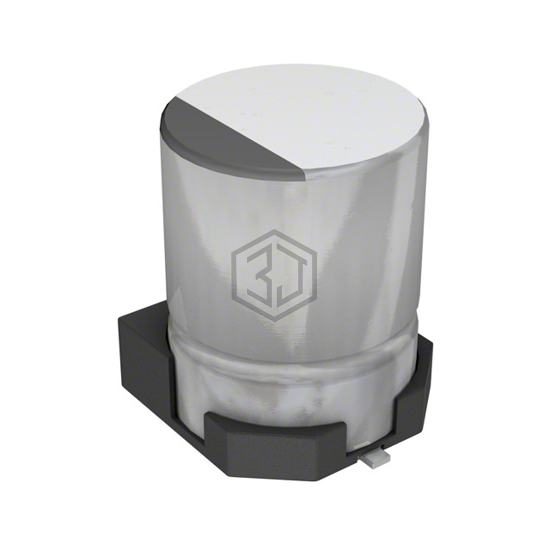

CAP ALUM 47UF 20% 50V SMD
AVS476M50X16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 47UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 3,219
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 4.2Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 90 mA @ 120 Hz |
| Ripple Current @ High Frequency | 153 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.311" (7.90mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS476M50X16B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UZ476M050HEJTA | Aillen | CAP ALUM 47UF 20% 50V SMD | 92% | View |
| VEU470M1VTR-0810S | Surge | CAP ALUM 35V POLAR | 85% | View |
| EEE-FK1V470AP | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V SMD | 65% | View |
| 476SVL025MEL | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 25V SMD | 60% | View |
| EDH476M010A9GAA | KEMET | CAP ALUM 47UF 20% 10V SMD | 60% | View |
| EDH476M100A9PAA | KEMET | CAP ALUM 47UF 20% 100V SMD | 56% | View |
Submit your RFQ for AVS476M50X16B-F and get a quote within 24 hours.
