Cornell Dubilier Electronics (CDE)

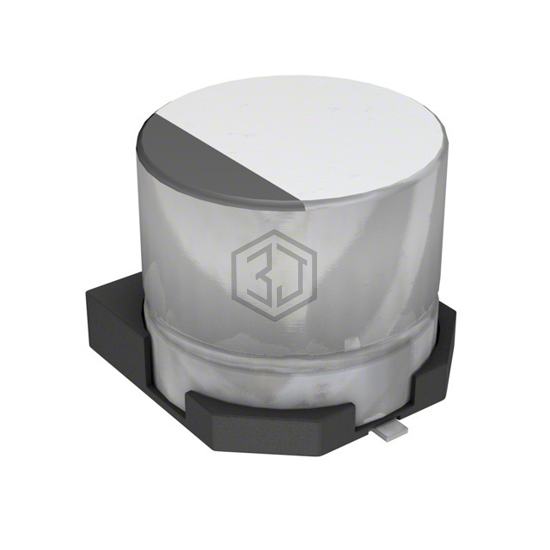

CAP ALUM 47UF 20% 25V SMD
AVS476M25D16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 47UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 5,310
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 7.1Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | 119 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS476M25D16B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865250445007 | Würth Elektronik | CAP ALUM 47UF 20% 25V SMD | 86% | View |
| EEE-HC1C470P | Panasonic Electronic Components | CAP ALUM 47UF 20% 16V SMD | 86% | View |
| 16JGV47M6.3X6.1 | Rubycon | CAP ALUM 47UF 20% 16V SMD | 83% | View |
| EMVY350ADA470MHA0G | United Chemi-Con | CAP ALUM 47UF 20% 35V SMD | 78% | View |
| 16SLV47M6.3X6.1 | Rubycon | CAP ALUM 47UF 20% 16V SMD | 67% | View |
| EEE-FK1E470AL | Panasonic Electronic Components | CAP ALUM 47UF 20% 25V SMD | 64% | View |
Submit your RFQ for AVS476M25D16B-F and get a quote within 24 hours.
