Cornell Dubilier Electronics (CDE)

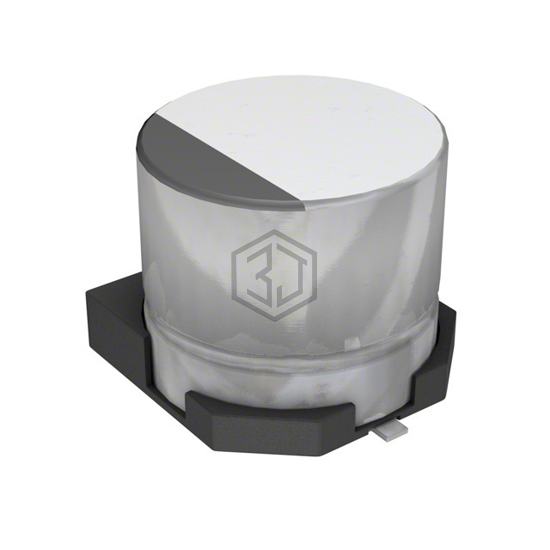

CAP ALUM 47UF 20% 16V SMD
AVS476M16D16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 47UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 6,127
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 5.6Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | 119 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS476M16D16B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UE476M016HEHTA | Aillen | CAP ALUM 47UF 20% 16V SMD | 95% | View |
| EEV-HA1C470WR | Panasonic Electronic Components | CAP ALUM 47UF 20% 16V SMD | 81% | View |
| MVK25VC47RMH63TP | United Chemi-Con | CAP ALUM 47UF 20% 25V SMD | 77% | View |
| UE476M010HEHTA | Aillen | CAP ALUM 47UF 20% 10V SMD | 75% | View |
| EEE-1CA470WAR | Panasonic Electronic Components | CAP ALUM 47UF 20% 16V SMD | 72% | View |
| EEE-FPC470UAR | Panasonic Electronic Components | CAP ALUM 47UF 20% 16V SMD | 64% | View |
Submit your RFQ for AVS476M16D16B-F and get a quote within 24 hours.
