Cornell Dubilier Electronics (CDE)

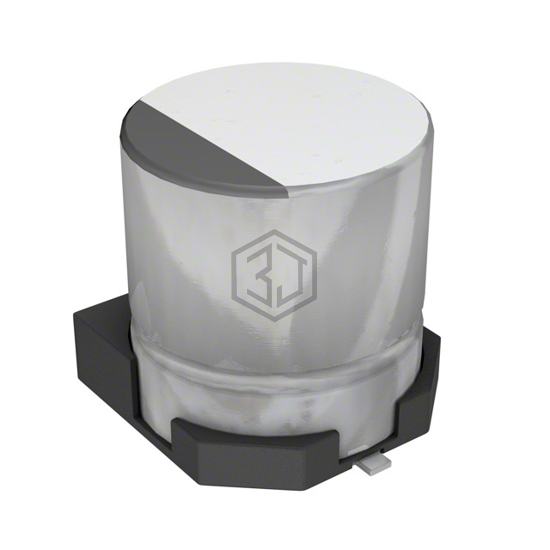

CAP ALUM 47UF 20% 16V SMD
AVS476M16C12B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 47UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 9,193
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 9.2Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 39 mA @ 120 Hz |
| Ripple Current @ High Frequency | 66.3 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS476M16C12B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16TXV47M6.3X6.1 | Rubycon | CAP ALUM 47UF 20% 16V SMD | 96% | View |
| UUA1C470MCL1GS | Nichicon | CAP ALUM 47UF 20% 16V SMD | 91% | View |
| UUP0J470MCL1GS | Nichicon | CAP ALUM 47UF 20% 6.3V SMD | 75% | View |
| 6.3JZV47M4X6.1 | Rubycon | CAP ALUM 47UF 20% 6.3V SMD | 67% | View |
| UWT1V470MCL1GS | Nichicon | CAP ALUM 47UF 20% 35V SMD | 59% | View |
| EMHL250ARA470MF61G | United Chemi-Con | CAP ALUM 47UF 20% 25V SMD | 51% | View |
Submit your RFQ for AVS476M16C12B-F and get a quote within 24 hours.
