Cornell Dubilier Electronics (CDE)

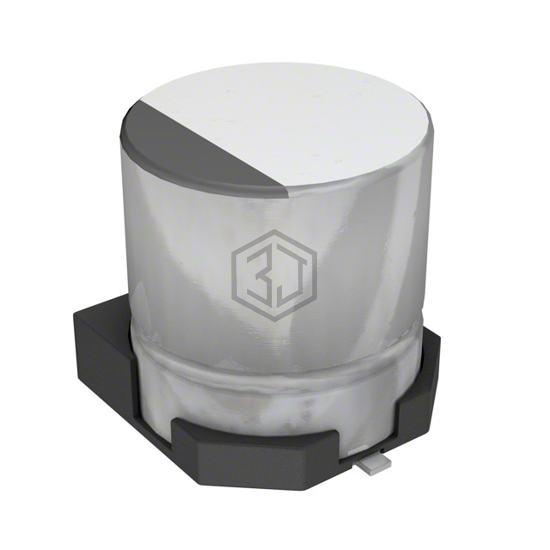

CAP ALUM 47UF 20% 6.3V SMD
AVS476M06C12B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 47UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 2,210
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 9.2Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 46 mA @ 120 Hz |
| Ripple Current @ High Frequency | 78.2 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS476M06C12B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AVES476M16D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 16V SMD | 72% | View |
| UWT1E470MCL6GS | Nichicon | CAP ALUM 47UF 20% 25V SMD | 70% | View |
| EEE-FN1C470UR | Panasonic Electronic Components | CAP ALUM 47UF 20% 16V SMD | 70% | View |
| EEE-FK1A560SR | Panasonic Electronic Components | CAP ALUM 56UF 20% 10V SMD | 70% | View |
| 476SVL016MEW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 16V SMD | 69% | View |
| EEE-FN1K470UV | Panasonic Electronic Components | CAP ALUM 47UF 20% 80V SMD | 52% | View |
Submit your RFQ for AVS476M06C12B-F and get a quote within 24 hours.
