Cornell Dubilier Electronics (CDE)

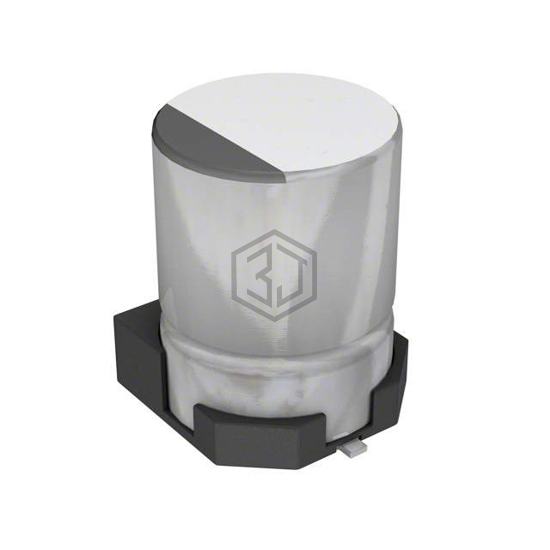

CAP ALUM 47UF 20% 4V SMD
AVS476M04B12B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 47UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 4 V, package / case Radial, Can - SMD.
In Stock: 4,752
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 12.3Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 34 mA @ 120 Hz |
| Ripple Current @ High Frequency | 57.8 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS476M04B12B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVK6R3ADA470ME55G | United Chemi-Con | CAP ALUM 47UF 20% 6.3V SMD | 79% | View |
| EDK476M010S9DAA | KEMET | CAP ALUM 47UF 20% 10V SMD | 72% | View |
| EEE-HAA470WAR | Panasonic Electronic Components | CAP ALUM 47UF 20% 10V SMD | 68% | View |
| CTB1V470MCB6358 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 63% | View |
| 865090243004 | Würth Elektronik | CAP ALUM 47UF 20% 10V SMD | 62% | View |
| MAL215097701E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 80V SMD | 56% | View |
