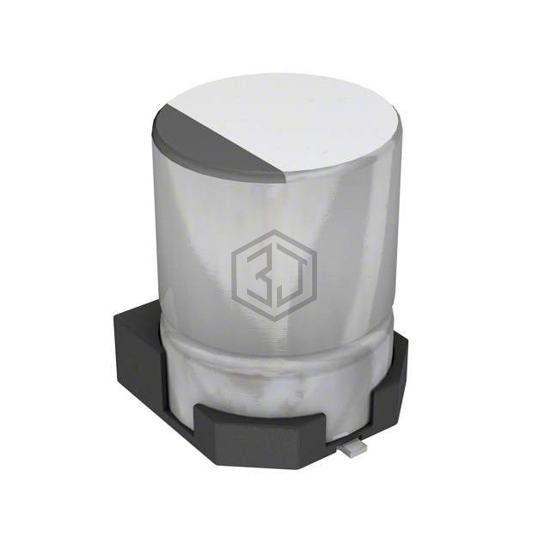

Cornell Dubilier Electronics (CDE)
CAP ALUM 0.47UF 20% 50V SMD
AVS474M50B12B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 0.47UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 7,873
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 424Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 8.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS474M50B12B-F is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-HB1HR47AR | Panasonic Electronic Components | CAP ALUM 0.47UF 20% 50V SMD | 100% | View |
| EEV-HB1HR47R | Panasonic Electronic Components | CAP ALUM 0.47UF 20% 50V SMD | 100% | View |
| UWP1HR47MCL1GB | Nichicon | CAP ALUM 0.47UF 20% 50V SMD | 86% | View |
| 50SEV0R47M4X5.5 | Rubycon | CAP ALUM 0.47UF 20% 50V SMD | 86% | View |
| 50JGV0.47M4X6.1 | Rubycon | CAP ALUM 0.47UF 20% 50V SMD | 86% | View |
| 50SEV0.47M4X5.5 | Rubycon | CAP ALUM 0.47UF 20% 50V SMD | 86% | View |
