Cornell Dubilier Electronics (CDE)
CAP ALUM 33UF 20% 6.3V SMD

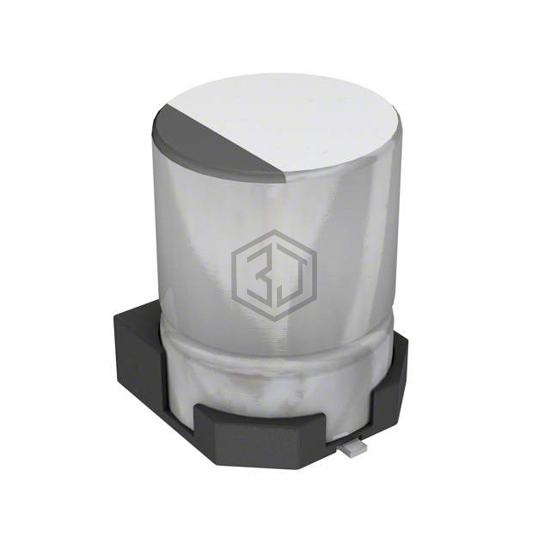

AVS336M06B12B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 33UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 1,725
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 17.6Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 29 mA @ 120 Hz |
| Ripple Current @ High Frequency | 49.3 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS336M06B12B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWX0J330MCR1GB | Nichicon | CAP ALUM 33UF 20% 6.3V SMD | 91% | View |
| UUL1A330MCL1GS | Nichicon | CAP ALUM 33UF 20% 10V SMD | 80% | View |
| EEE-FN0J330R | Panasonic Electronic Components | CAP ALUM 33UF 20% 6.3V SMD | 69% | View |
| 865090343004 | Würth Elektronik | CAP ALUM 33UF 20% 16V SMD | 57% | View |
| EEV336M010A9BAA | KEMET | CAP ALUM 33UF 20% 10V SMD | 53% | View |
| 25SEV33M6.3X5.5 | Rubycon | CAP ALUM 33UF 20% 25V SMD | 52% | View |
