Cornell Dubilier Electronics (CDE)

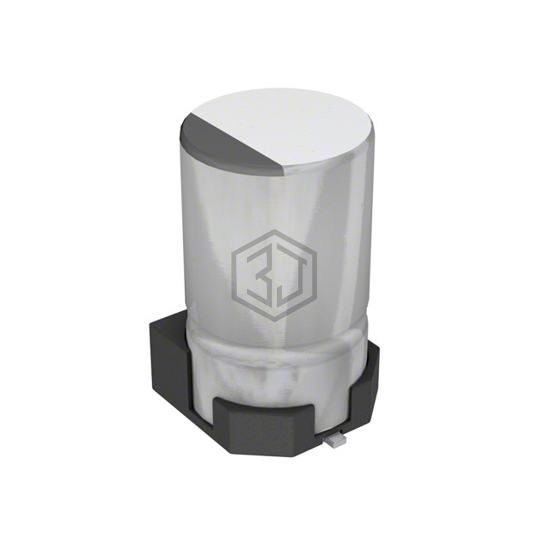

CAP ALUM 3.3UF 20% 35V SMD
AVS335M35A12T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3.3UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 1,853
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 70.4Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 10 mA @ 120 Hz |
| Ripple Current @ High Frequency | 17 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.130" L x 0.130" W (3.30mm x 3.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS335M35A12T-F is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EDK335M035S9BAA | KEMET | CAP ALUM 3.3UF 20% 35V SMD | 93% | View |
| UZP1E3R3MCL1GB | Nichicon | CAP ALUM 3.3UF 20% 25V SMD | 84% | View |
| UZT1H3R3MCL1GB | Nichicon | CAP ALUM 3.3UF 20% 50V SMD | 83% | View |
| EDH335M050A9BAA | KEMET | CAP ALUM 3.3UF 20% 50V SMD | 74% | View |
| 50SEV3.3M4X5.5 | Rubycon | CAP ALUM 3.3UF 20% 50V SMD | 67% | View |
| EMVA630ADA3R3ME55G | United Chemi-Con | CAP ALUM 3.3UF 20% 63V SMD | 60% | View |
Submit your RFQ for AVS335M35A12T-F and get a quote within 24 hours.
