Cornell Dubilier Electronics (CDE)

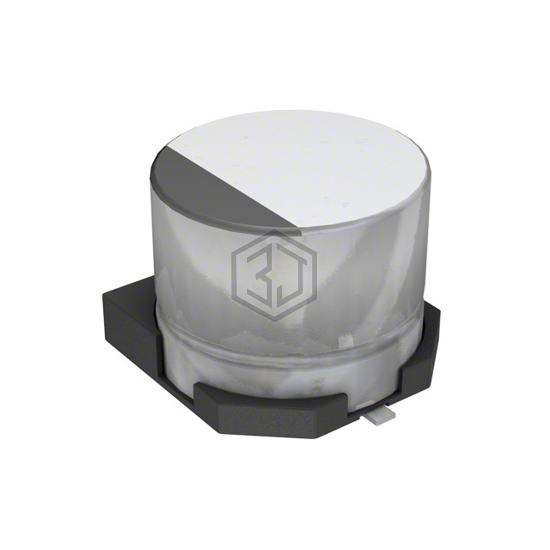

CAP ALUM 3.3UF 20% 100V SMD
AVS335M2AE16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3.3UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 3,859
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 90.4Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 50 mA @ 120 Hz |
| Ripple Current @ High Frequency | 85 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS335M2AE16B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-2AA3R3P | Panasonic Electronic Components | CAP ALUM 3.3UF 20% 100V SMD | 100% | View |
| AHD335M2AE16T | Cornell Dubilier Electronics (CDE) | CAP ALUM 3.3UF 20% 100V SMD | 76% | View |
| AEF08103R3M400R | KYOCERA AVX | CAP ALUM 400V POLAR | 67% | View |
| VMMD0622G2R7MV | Ymin | CAP ALUM 400V POLAR | 66% | View |
| UUB2G3R3MNL1GS | Nichicon | CAP ALUM 3.3UF 20% 400V SMD | 63% | View |
| UUX2E3R3MNL1GS | Nichicon | CAP ALUM 3.3UF 20% 250V SMD | 56% | View |
