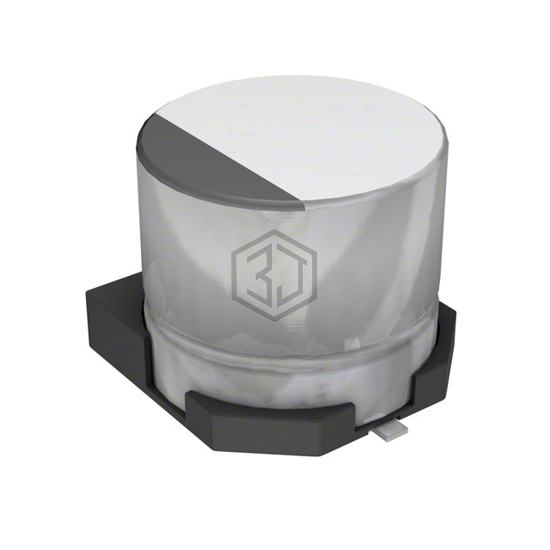

Cornell Dubilier Electronics (CDE)
CAP ALUM 220UF 20% 6.3V SMD
AVS227M06D16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 220UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 1,686
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 2.6Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 74 mA @ 120 Hz |
| Ripple Current @ High Frequency | 125.8 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS227M06D16B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AVGA227M06X16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 6.3V SMD | 84% | View |
| UZ227M6V3HEHTA | Aillen | CAP ALUM 220UF 20% 6.3V SMD | 79% | View |
| EEE-HBA221UAP | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V SMD | 67% | View |
| VUJ221M1CTR-1010S | SURGE | CAP ALUM 220UF 20% 16V SMD | 66% | View |
| EEE-FP0J221AV | Panasonic Electronic Components | CAP ALUM 220UF 20% 6.3V SMD | 56% | View |
| EMVY350ADA221MJA0G | United Chemi-Con | CAP ALUM 220UF 20% 35V SMD | 56% | View |
