Cornell Dubilier Electronics (CDE)
CAP ALUM 220UF 20% 4V SMD

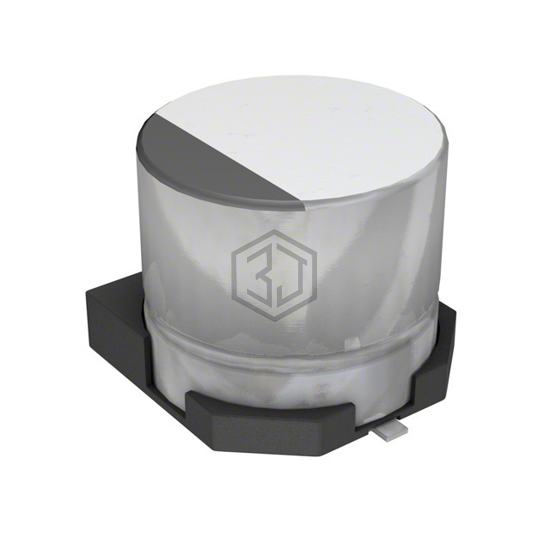

AVS227M04D16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 220UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 4 V, package / case Radial, Can - SMD.
In Stock: 9,652
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 2.6Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 82 mA @ 120 Hz |
| Ripple Current @ High Frequency | 139.4 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS227M04D16B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV-HA0J221WP | Panasonic Electronic Components | CAP ALUM 220UF 20% 6.3V SMD | 78% | View |
| EMVA6R3ADA221MF55G | United Chemi-Con | CAP ALUM 220UF 20% 6.3V SMD | 75% | View |
| EMVL6R3ARA221MF80G | Chemi-Con | CAP ALUM 220UF 20% 6.3V SMD | 75% | View |
| 865090249008 | Würth Elektronik | CAP ALUM 220UF 20% 10V SMD | 63% | View |
| EMLA100ADA221MF80G | United Chemi-Con | CAP ALUM 220UF 20% 10V SMD | 59% | View |
| 16SEV220M6.3X8 | Rubycon | CAP ALUM 220UF 20% 16V SMD | 54% | View |
Submit your RFQ for AVS227M04D16B-F and get a quote within 24 hours.
