Cornell Dubilier Electronics (CDE)
CAP ALUM 22UF 20% 63V SMD

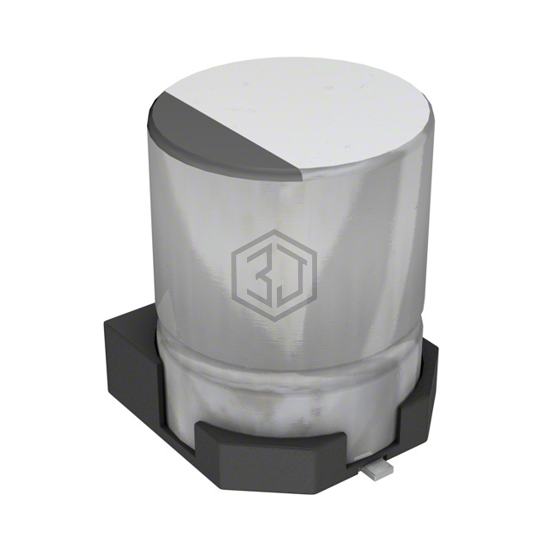

AVS226M63F24B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 1,789
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 13.6Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 40 mA @ 120 Hz |
| Ripple Current @ High Frequency | 68 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS226M63F24B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AVGA226M63X16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 63V SMD | 88% | View |
| MVA50VC22RMF55TP | United Chemi-Con | CAP ALUM 22UF 20% 50V SMD | 85% | View |
| EDH226M050S9HAA | KEMET | CAP ALUM 22UF 20% 50V SMD | 77% | View |
| EEE-HD1J220P | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V SMD | 77% | View |
| EDK226M025S9DAA | KEMET | CAP ALUM 22UF 20% 25V SMD | 65% | View |
| MAL215375229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 16V SMD | 60% | View |
Submit your RFQ for AVS226M63F24B-F and get a quote within 24 hours.
