Cornell Dubilier Electronics (CDE)

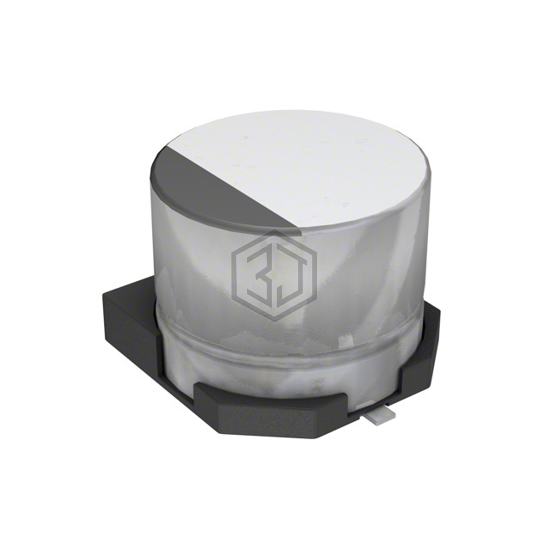

CAP ALUM 22UF 20% 63V SMD
AVS226M63E16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 7,519
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 13.6Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 40 mA @ 120 Hz |
| Ripple Current @ High Frequency | 68 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS226M63E16B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV226M050S9GAA | KEMET | CAP ALUM 22UF 20% 50V SMD | 87% | View |
| UUL1V220MCL1GS | Nichicon | CAP ALUM 22UF 20% 35V SMD | 79% | View |
| EDH226M016A9DAA | KEMET | CAP ALUM 22UF 20% 16V SMD | 70% | View |
| UZT1E220MCL1GB | Nichicon | CAP ALUM 22UF 20% 25V SMD | 67% | View |
| EEE-FKC220UAR | Panasonic Electronic Components | CAP ALUM 22UF 20% 16V SMD | 63% | View |
| 226SML016MD4 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 16V SMD | 62% | View |
Submit your RFQ for AVS226M63E16B-F and get a quote within 24 hours.
