Cornell Dubilier Electronics (CDE)

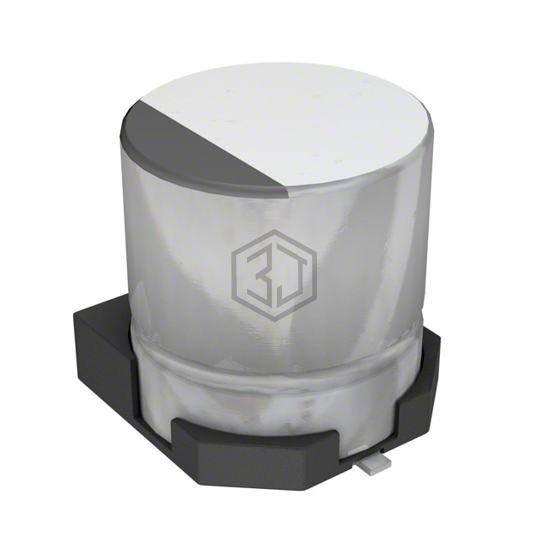

CAP ALUM 22UF 20% 25V SMD
AVS226M25C12B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 2,472
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 15.1Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 35 mA @ 120 Hz |
| Ripple Current @ High Frequency | 59.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS226M25C12B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EDH226M025S9DAA | KEMET | CAP ALUM 22UF 20% 25V SMD | 82% | View |
| 16SKV22M5X5.5 | Rubycon | CAP ALUM 22UF 20% 16V SMD | 78% | View |
| 16SLV22M5X6.1 | Rubycon | CAP ALUM 22UF 20% 16V SMD | 76% | View |
| UWP1V220MCL1GB | Nichicon | CAP ALUM 22UF 20% 35V SMD | 72% | View |
| EEE-HD1V220AP | Panasonic Electronic Components | CAP ALUM 22UF 20% 35V SMD | 68% | View |
| EEE-FN1A220R | Panasonic Electronic Components | CAP ALUM 22UF 20% 10V SMD | 57% | View |
Submit your RFQ for AVS226M25C12B-F and get a quote within 24 hours.
