Cornell Dubilier Electronics (CDE)
CAP ALUM 22UF 20% 4V SMD

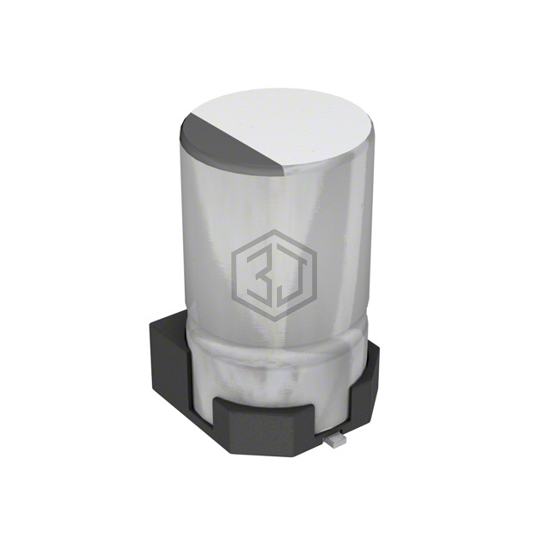

AVS226M04A12B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 4 V, package / case Radial, Can - SMD.
In Stock: 6,180
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 27.9Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 19 mA @ 120 Hz |
| Ripple Current @ High Frequency | 32.3 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.130" L x 0.130" W (3.30mm x 3.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS226M04A12B-F is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVL160ARA220ME60G | Chemi-Con | CAP ALUM 22UF 20% 16V SMD | 68% | View |
| 6.3SZV22M4X5.5 | Rubycon | CAP ALUM 22UF 20% 6.3V SMD | 63% | View |
| MVA16VC22RMD55TP | United Chemi-Con | CAP ALUM 22UF 20% 16V SMD | 61% | View |
| UWT1C220MCL1GB | Nichicon | CAP ALUM 22UF 20% 16V SMD | 60% | View |
| EDK226M035S9DAA | KEMET | CAP ALUM 22UF 20% 35V SMD | 56% | View |
| 865090240002 | Würth Elektronik | CAP ALUM 22UF 20% 10V SMD | 56% | View |
Submit your RFQ for AVS226M04A12B-F and get a quote within 24 hours.
