Cornell Dubilier Electronics (CDE)
CAP ALUM 2.2UF 20% 35V SMD

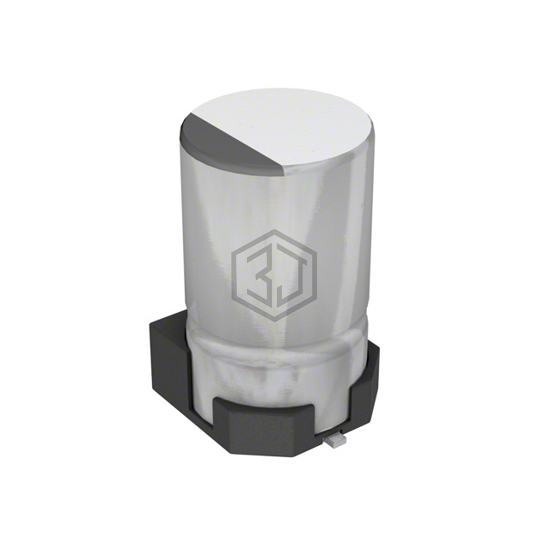

AVS225M35A12B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2.2UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,321
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 105.6Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 13.8 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.130" L x 0.130" W (3.30mm x 3.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS225M35A12B-F is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWX1H2R2MCR2GB | Nichicon | CAP ALUM 2.2UF 20% 50V SMD | 82% | View |
| 25MF225KB13225 | Rubycon | CAP FILM 2.2UF 10% 25VDC 1210 | 78% | View |
| 50SKV2.2M4X5.5 | Rubycon | CAP ALUM 2.2UF 20% 50V SMD | 77% | View |
| EMVE500ARA2R2MD55G | Chemi-Con | CAP ALUM 2.2UF 20% 50V SMD | 72% | View |
| UUP1H2R2MCL1GS | Nichicon | CAP ALUM 2.2UF 20% 50V SMD | 69% | View |
| 225SML050MD4 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2.2UF 20% 50V SMD | 62% | View |
Submit your RFQ for AVS225M35A12B-F and get a quote within 24 hours.
