Cornell Dubilier Electronics (CDE)

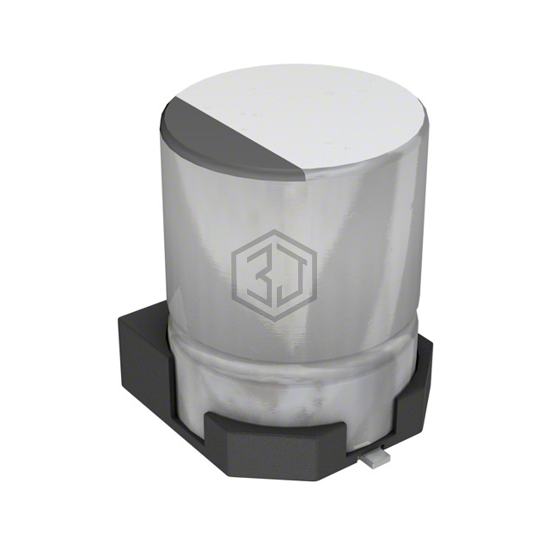

CAP ALUM 100UF 20% 35V SMD
AVS107M35X16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 100UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 6,383
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 2Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 221 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.311" (7.90mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS107M35X16B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV-TG1V101P | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V SMD | 88% | View |
| AHA107M50F24B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 50V SMD | 81% | View |
| MAL214297304E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6.3V POLAR | 73% | View |
| AHA107M10E16B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 10V SMD | 71% | View |
| UCD1H101MNS1GS | Nichicon | CAP ALUM 50V POLAR | 71% | View |
| EMVY101GTR101MKE0S | United Chemi-Con | CAP ALUM 100UF 20% 100V SMD | 56% | View |
Submit your RFQ for AVS107M35X16B-F and get a quote within 24 hours.
