Cornell Dubilier Electronics (CDE)

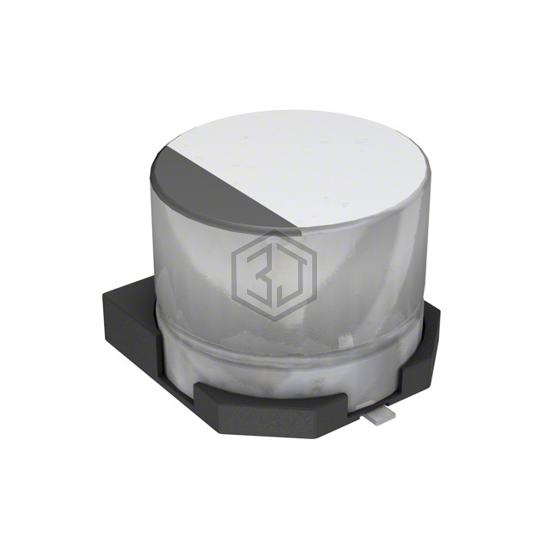

CAP ALUM 100UF 20% 16V SMD
AVS107M16E16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 100UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 6,777
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 3.3Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 340 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS107M16E16B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UZ107M016HEHTA | Aillen | CAP ALUM 100UF 20% 16V SMD | 89% | View |
| SRB16V101M-H63 | Meritek | CAP ALUM 100UF 20% 16V SMD | 76% | View |
| UZ107M025HEJTA | Aillen | CAP ALUM 100UF 20% 25V SMD | 76% | View |
| UZ107M010HEHTA | Aillen | CAP ALUM 100UF 20% 10V SMD | 69% | View |
| SRE50V101MH102 | Meritek | CAP ALUM 100UF 20% 50V SMD | 67% | View |
| EMZA350ADA101MF80S | United Chemi-Con | CAP ALUM 100UF 20% 35V SMD | 60% | View |
Submit your RFQ for AVS107M16E16B-F and get a quote within 24 hours.
