Cornell Dubilier Electronics (CDE)
CAP ALUM 100UF 20% 10V SMD

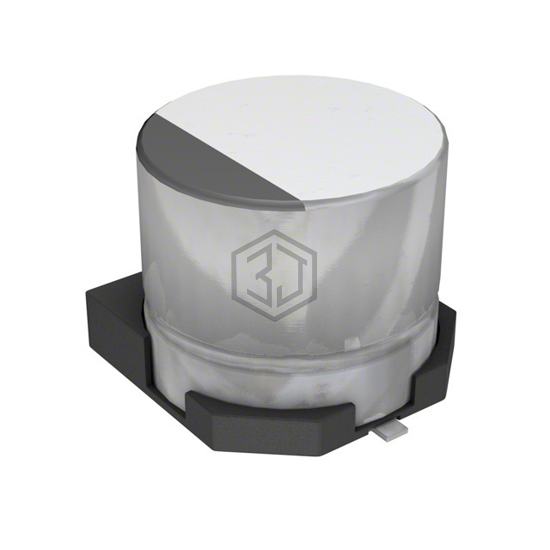

AVS107M10D16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 100UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 9,615
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 3.3Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 119 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS107M10D16B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVH100ARA101MF80G | Chemi-Con | CAP ALUM 100UF 20% 10V SMD | 97% | View |
| AEF0608101M006R | KYOCERA AVX | CAP ALUM 6.3V POLAR | 75% | View |
| AFK107M06C12B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 6.3V SMD | 71% | View |
| AEK0608101M016R | KYOCERA AVX | CAP ALUM 16V POLAR | 68% | View |
| EMHJ160ARA101MF80G | Chemi-Con | CAP ALUM 100UF 20% 16V SMD | 61% | View |
| EEV-FK0J101P | Panasonic Electronic Components | CAP ALUM 100UF 20% 6.3V SMD | 58% | View |
Submit your RFQ for AVS107M10D16B-F and get a quote within 24 hours.
