Cornell Dubilier Electronics (CDE)

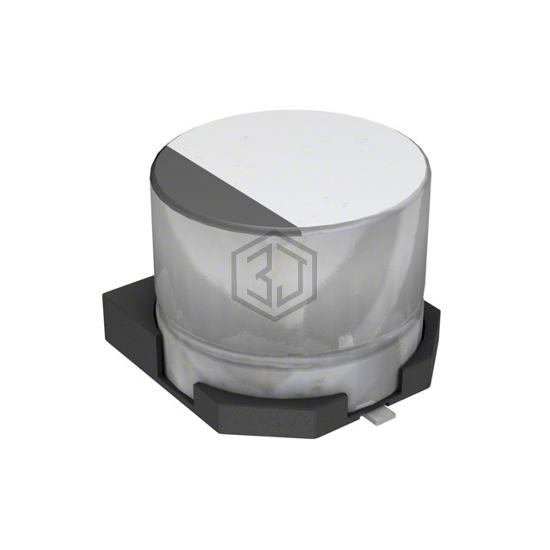

CAP ALUM 10UF 20% 100V SMD
AVS106M2AE16B-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 10UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 8,867
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 29.8Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 50 mA @ 120 Hz |
| Ripple Current @ High Frequency | 85 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS106M2AE16B-F is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCZ2A100MCL1GS | Nichicon | CAP ALUM 10UF 20% 100V SMD | 88% | View |
| UUX1J100MCL1GS | Nichicon | CAP ALUM 10UF 20% 63V SMD | 85% | View |
| EEE-FK1K100XP | Panasonic Electronic Components | CAP ALUM 10UF 20% 80V SMD | 82% | View |
| 106SML100MD8 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 100V SMD | 78% | View |
| AFK106M35B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 35V SMD | 70% | View |
| EMVY250ARA100ME55G | Chemi-Con | CAP ALUM 10UF 20% 25V SMD | 70% | View |
Submit your RFQ for AVS106M2AE16B-F and get a quote within 24 hours.
