Cornell Dubilier Electronics (CDE)

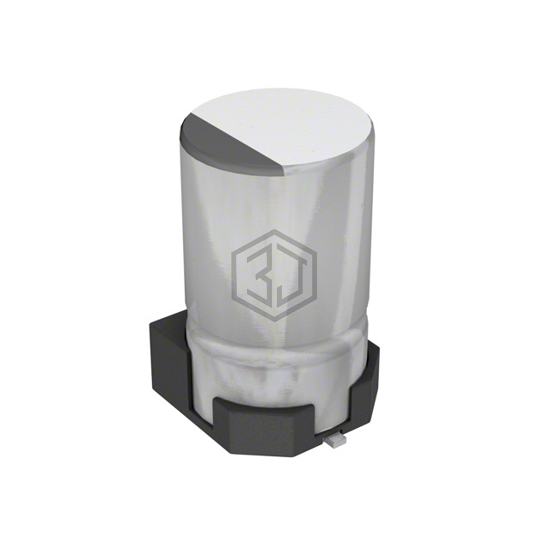

CAP ALUM 0.1UF 20% 50V SMD
AVS104M50A12T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 0.1UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 9,256
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.1 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 2.32kOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 1 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.7 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.130" L x 0.130" W (3.30mm x 3.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVS104M50A12T-F is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-1HAR10AR | Panasonic Electronic Components | CAP ALUM 0.1UF 20% 50V SMD | 100% | View |
| EEE-HB1HR10AR | Panasonic Electronic Components | CAP ALUM 0.1UF 20% 50V SMD | 100% | View |
| ECE-V1HA0R1SR | Panasonic Electronic Components | CAP ALUM 0.1UF 20% 50V SMD | 100% | View |
| AHA104M50B12B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 0.1UF 20% 50V SMD | 100% | View |
| UUP1H0R1MCL1GS | Nichicon | CAP ALUM 0.1UF 20% 50V SMD | 97% | View |
| 104SMH050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 0.1UF 20% 50V SMD | 63% | View |
Submit your RFQ for AVS104M50A12T-F and get a quote within 24 hours.
