Cornell Dubilier Electronics (CDE)

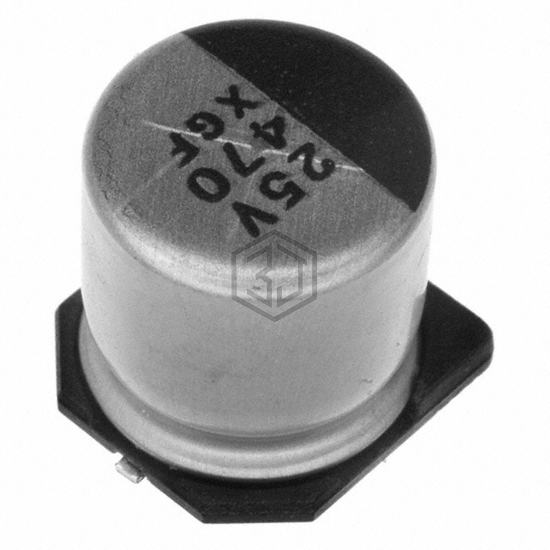

CAP ALUM 470UF 20% 25V SMD
AVRF477M25G24T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 470UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 5,176
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVRF477M25G24T-F is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMZS250ARA471MHA0G | United Chemi-Con | CAP ALUM 470UF 20% 25V SMD | 100% | View |
| VUJ471M1ETR-1313S | SURGE | CAP ALUM 470UF 20% 25V SMD | 94% | View |
| EMVY350ARA471MKE0S | United Chemi-Con | CAP ALUM 470UF 20% 35V SMD | 85% | View |
| ATB477M016 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 16V SMD | 78% | View |
| EXV477M010S9PAA | KEMET | CAP ALUM 470UF 20% 10V SMD | 70% | View |
| EEE-FN1A471L | Panasonic Electronic Components | CAP ALUM 470UF 20% 10V SMD | 60% | View |
Submit your RFQ for AVRF477M25G24T-F and get a quote within 24 hours.
