Cornell Dubilier Electronics (CDE)

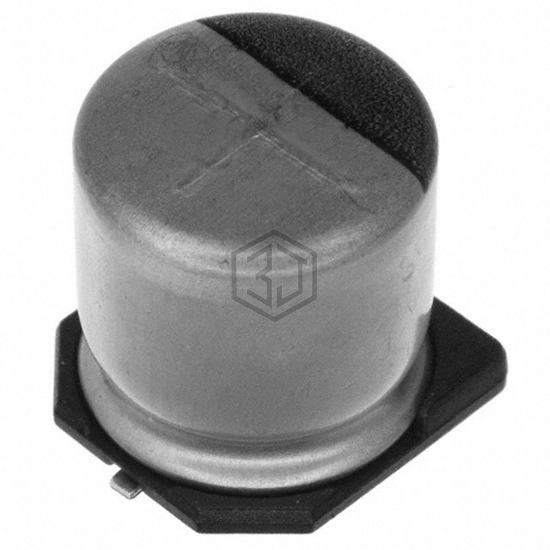

CAP ALUM 1000UF 20% 10V SMD
AVRF108M10G24T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1000UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 5,463
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVRF108M10G24T-F is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AFK108M10G24B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 10V SMD | 100% | View |
| UBC1A102MNS1ZD | Nichicon | CAP ALUM 1000UF 20% 10V SMD | 98% | View |
| MAL214099513E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V SMD | 77% | View |
| UUJ1V102MNQ1ZD | Nichicon | CAP ALUM 1000UF 20% 35V SMD | 71% | View |
| EMVY250GTR102MLH0S | United Chemi-Con | CAP ALUM 1000UF 20% 25V SMD | 60% | View |
| UUE1V102MNS1MS | Nichicon | CAP ALUM 1000UF 20% 35V SMD | 55% | View |
Submit your RFQ for AVRF108M10G24T-F and get a quote within 24 hours.
