Cornell Dubilier Electronics (CDE)

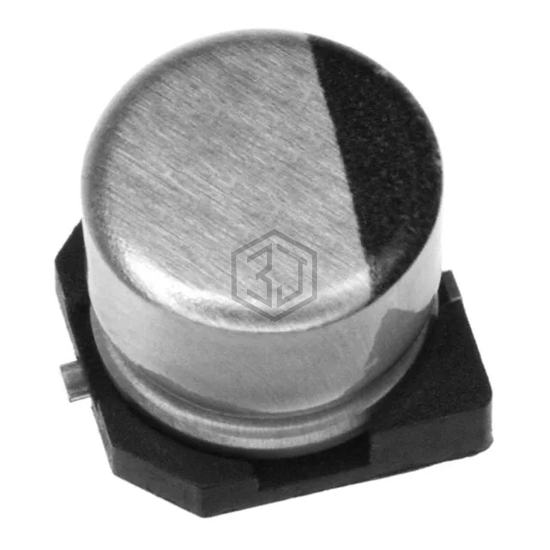

CAP ALUM 22UF 20% 25V SMD
AVEZ226M25D16T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 4,268
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 136 mA @ 120 Hz |
| Ripple Current @ High Frequency | 170 mA @ 100 kHz |
| Impedance | 850 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AFK226M25C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 25V SMD | 94% | View |
| EEE-FK1C220R | Panasonic Electronic Components | CAP ALUM 22UF 20% 16V SMD | 82% | View |
| EEE-FK1C220AR | Panasonic Electronic Components | CAP ALUM 22UF 20% 16V SMD | 79% | View |
| EMK1VM220E61D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 78% | View |
| 35TZV22M5X6.1 | Rubycon | CAP ALUM 22UF 20% 35V SMD | 70% | View |
| UCM1H220MCL1GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 70% | View |
