Cornell Dubilier Electronics (CDE)

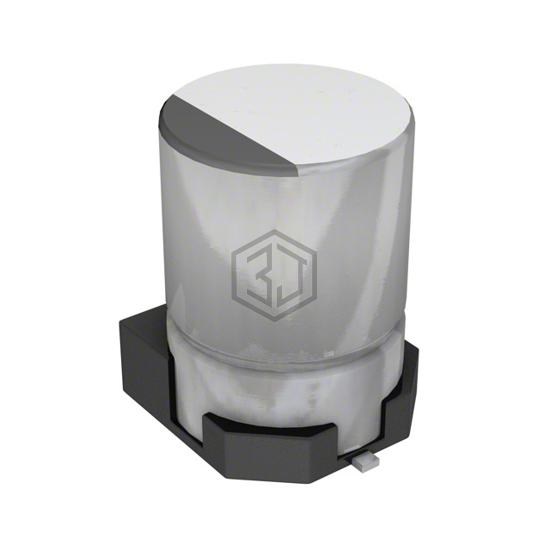

CAP ALUM 22UF 20% 25V SMD
AVE226M25D16T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 7,790
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 10.55Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | 77 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VKLB1001V220MVTM | Ymin | CAP ALUM 35V POLAR | 79% | View |
| UWT1H220MCL6GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 71% | View |
| EMVL350ADA220MF60G | United Chemi-Con | CAP ALUM 22UF 20% 35V SMD | 71% | View |
| UWD1C220MCL1GS | Nichicon | CAP ALUM 22UF 20% 16V SMD | 63% | View |
| EEE-FK1J220XP | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V SMD | 57% | View |
| AFK226M80F24VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 80V SMD | 53% | View |
Submit your RFQ for AVE226M25D16T-F and get a quote within 24 hours.
