Cornell Dubilier Electronics (CDE)
CAP ALUM 0.22UF 20% 50V SMD

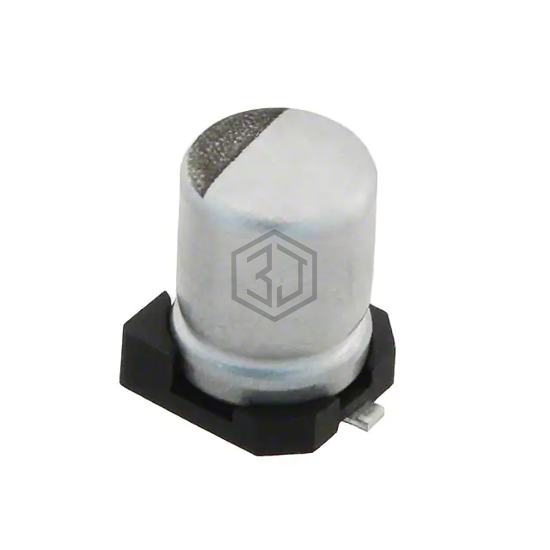

AVE224M50B12T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 0.22UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 5,884
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 753.56Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 7.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
AVE224M50B12T-F is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECE-V1HVR22SR | Panasonic Electronic Components | CAP ALUM 0.22UF 20% 50V SMD | 100% | View |
| AVGA224M50B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 0.22UF 20% 50V SMD | 83% | View |
| UWT1HR22MCR1GB | Nichicon | CAP ALUM 0.22UF 20% 50V SMD | 79% | View |
| UWZ1HR22MCL1GB | Nichicon | CAP ALUM 0.22UF 20% 50V SMD | 79% | View |
| ECE-V1HAR22NR | Panasonic Electronic Components | CAP ALUM 0.22UF 20% 50V SMD | 70% | View |
| UUP1HR22MCL1GS | Nichicon | CAP ALUM 0.22UF 20% 50V SMD | 56% | View |
Submit your RFQ for AVE224M50B12T-F and get a quote within 24 hours.
