Cornell Dubilier Electronics (CDE)
CAP ALUM 100UF 20% 35V SMD

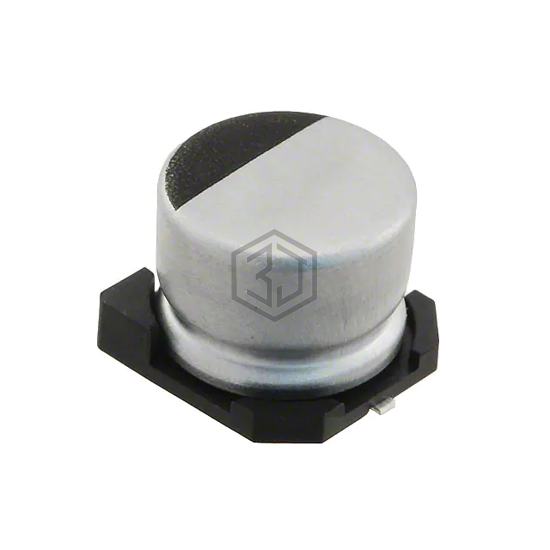

AVE107M35F24T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 100UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,114
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 1.99Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 252 mA @ 120 Hz |
| Ripple Current @ High Frequency | 352.8 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.331" L x 0.331" W (8.40mm x 8.40mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVY350ADB101MJA0S | United Chemi-Con | CAP ALUM 100UF 20% 35V SMD | 100% | View |
| 107SML050MD10 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 100UF 20% 50V SMD | 88% | View |
| AVS107M50F24B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 50V SMD | 83% | View |
| MVK50VC101MJ10TP | United Chemi-Con | CAP ALUM 100UF 20% 50V SMD | 79% | View |
| MALSECA00AG310HARK | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V SMD | 77% | View |
| EMVY160ADA101MH63G | United Chemi-Con | CAP ALUM 100UF 20% 16V SMD | 56% | View |
