Cornell Dubilier Electronics (CDE)
20UF 160VAC 42.5X37X28MM LS=37.5

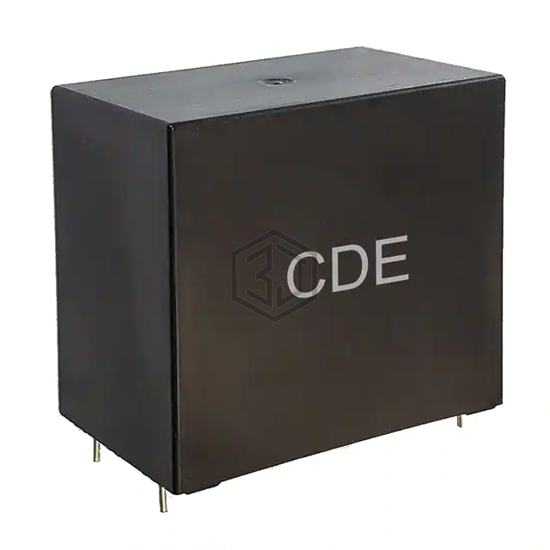

ALH206K161B064 is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). 20UF 160VAC 42.5X37X28MM LS=37.5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - ac 160V, package / case Radial - 4 Leads.
In Stock: 3,301
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 20 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 160V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 6.9 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 1.673" L x 1.102" W (42.50mm x 28.00mm) |
| Height - Seated (Max) | 1.488" (37.80mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200 |
| Features | 85C/85% Humidity |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1848620454P4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 20UF 5% 450VDC RADIAL | 100% | View |
| MKP1848S62070JY2B | Vishay Beyschlag/Draloric/BC Components | CAP FILM 20UF 5% 700VDC RADIAL | 100% | View |
| MKP1848620704P4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 20UF 5% 700VDC RADIAL | 100% | View |
| MKP1848620924Y5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 20UF 5% 1.2KVDC RADIAL | 100% | View |
| BLH206K112B114 | Cornell Dubilier Electronics (CDE) | DC LINK, THB, 85/85, AEC-Q200 | 100% | View |
| ALH206K251B104 | Cornell Dubilier Electronics (CDE) | 20UF 250VAC 42.5X45X30MM LS=37.5 | 92% | View |
