Cornell Dubilier Electronics (CDE)
15UF 275VAC 42.5X45X30MM LS=37.5

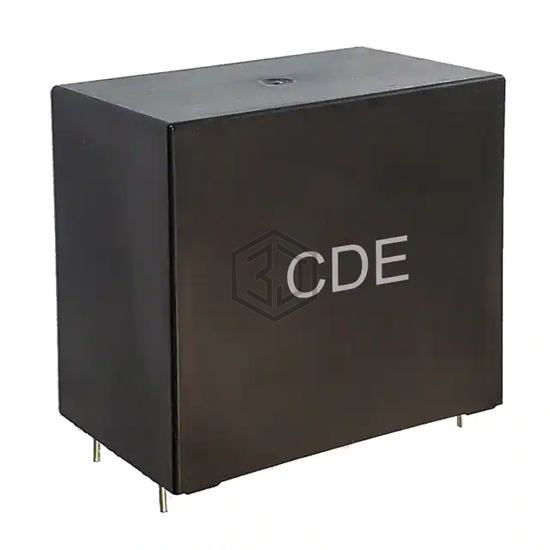

ALH156K271B104 is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). 15UF 275VAC 42.5X45X30MM LS=37.5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - ac 275V, package / case Radial - 4 Leads.
In Stock: 5,702
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 275V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 5.1 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 1.673" L x 1.181" W (42.50mm x 30.00mm) |
| Height - Seated (Max) | 1.803" (45.80mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200 |
| Features | 85C/85% Humidity |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1848C61580JP4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 15UF 5% 800VDC RADIAL | 100% | View |
| MKP1848S61570JP4F | Vishay Beyschlag/Draloric/BC Components | CAP FILM 15UF 5% 700VDC RADIAL | 100% | View |
| MKP1848C61512JP5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 15UF 5% 1.2KVDC RADIAL | 100% | View |
| B32926H3156M | EPCOS - TDK Electronics | CAP FILM 15UF 20% 630VDC RADIAL | 98% | View |
| EZP-Q33156LTB | Panasonic Electronic Components | CAP FILM 15UF 5% 330VAC RADIAL | 97% | View |
| MKP385615063JYI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 15UF 5% 630VDC RADIAL | 96% | View |
Submit your RFQ for ALH156K271B104 and get a quote within 24 hours.
